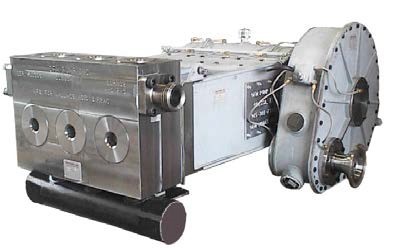

Zone 2 600 Pump Unit

$0.00

The OFM 600 pumping fully containerized. The pumps are appropriate for intermittent full load pumping operations. This includes applications such as water injection, reverse circulation, well killing, acidizing and cementing operations

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Features:

Installed in heavy duty, fully bunded 7-1 offshore container
Designed for stacking in use - ISO Blocks for locked-on safety
Internal personnel access way between units when stacked
Compact footprint - transport two inside a 40ft shipping container
Internal space in container for hoses and connections

Options:

MC2 Flow Meter
Centrifugal charge pump

*Engine Specification*
*Engine model*	Cummins N14
*Horse* *Power*	500hp
*Engine idle speed*	900
*Maximum* *engine* *speed*	2100
*Engine oil capacity*	40 liters
*Engine oil specification*	15w40 Mineral
*Engine coolant capacity*	220 liters
*Fuel* *tank capacity*	250 liters
*Fuel* *consumption* *at load*	68 liters per hour

*Pump* *Performance*
*Model*	OFM 600
*Type*	Triplex
*Max Flow Rate*	13.2 BBL/min
*BBLs/Day*	19,000 bpd
*Max operating pressure*	6,288 psi
*Plunger* *Diameter*	4 1/2”
*Plunger* *Stroke*	6”
*Ratio*	4.68 to 1
*Lubrication* *oil specification*	EP Gear oil #320
*Lubrication* *oil capacity*	8 Gal

*Lifting* *Specification, Weights & Dimensions*
*Lifting* *Spec*	DNV 2.7-1
*Length*	534 cm
*Width*	223 cm
*Height*	251 cm
*Operating* *Weight*	11,500kgs
*Max Gross weight*	13,000kgs

*Operating* *Systems*
*Start* *system*	Air
*Shut down system*	Air
*Pump* *discharge* *connection*	2” 1502
*Pump* *suction* *connection*	4” 206
*Manual Transmission*	Alison HT754
