Weatherford Optimax™ Tubing Retrievable Down Hole Safety Valves

Be the first to review this product

$240,000.00

Weatherford Optimax™ WSP(E)-5.50 Tubing-Retrievable Safety Valve (2 ea) with accessories

Qty:

Overview
Reviews
Contact Us

Engineered for reliability in demanding well environments, the Optimax™ WSP(E) is a slimline, tubing-retrievable, surface-controlled subsurface safety valve (TRSCSSV) designed for 5-1/2 in. completions. With a 5,000 psi working
pressure rating and proven curved-flapper design, it provides secure well shut-in capability under high-pressure and high-flow conditions. Complete documentation provided.

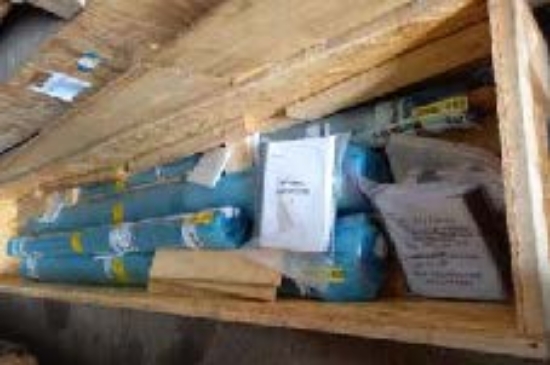

The package includes two (2) complete Weatherford 5.50 Optimax™ WSP(E) TRSCSSV, one (1) wireline retrievable
safety valve (Insert Valve Premium) and one (1) Non-Sealing Hold Open / Protection Sleeve.

#	Qty	Sr #	Description
1	2	OF71478 / OF71479	ASSY, TRSV, 5.50 WSPE-5. 4.562, QN, 5.50, 17#JFEBear BxP, 13Cr
2	1	OF71584	Optimax™ WIT Series Surface Controlled Subsurface Insert Wireline Retrievable Safety Valve. Model: WIT-10. Size: 5.500" × 4.562". Lock Mandrel Profile: QN (Weatherford Petroline Top No-Go). Valve OD: 4.620" (No-Go OD). Valve ID / Flow Area: 6.848 in².
3	1	OF71583	Optimax™ WSC TRSV Non-Sealing Hold Open / Protection Sleeve Model: WSC. Size: 4.562". Lock Profile: QN (Weatherford Petroline Top No-Go). Tool OD: 4.669" (Collet) & 4.620" (No-Go). Tool ID: 4.000". Materials: AISI 4135 - 45 L-80.
