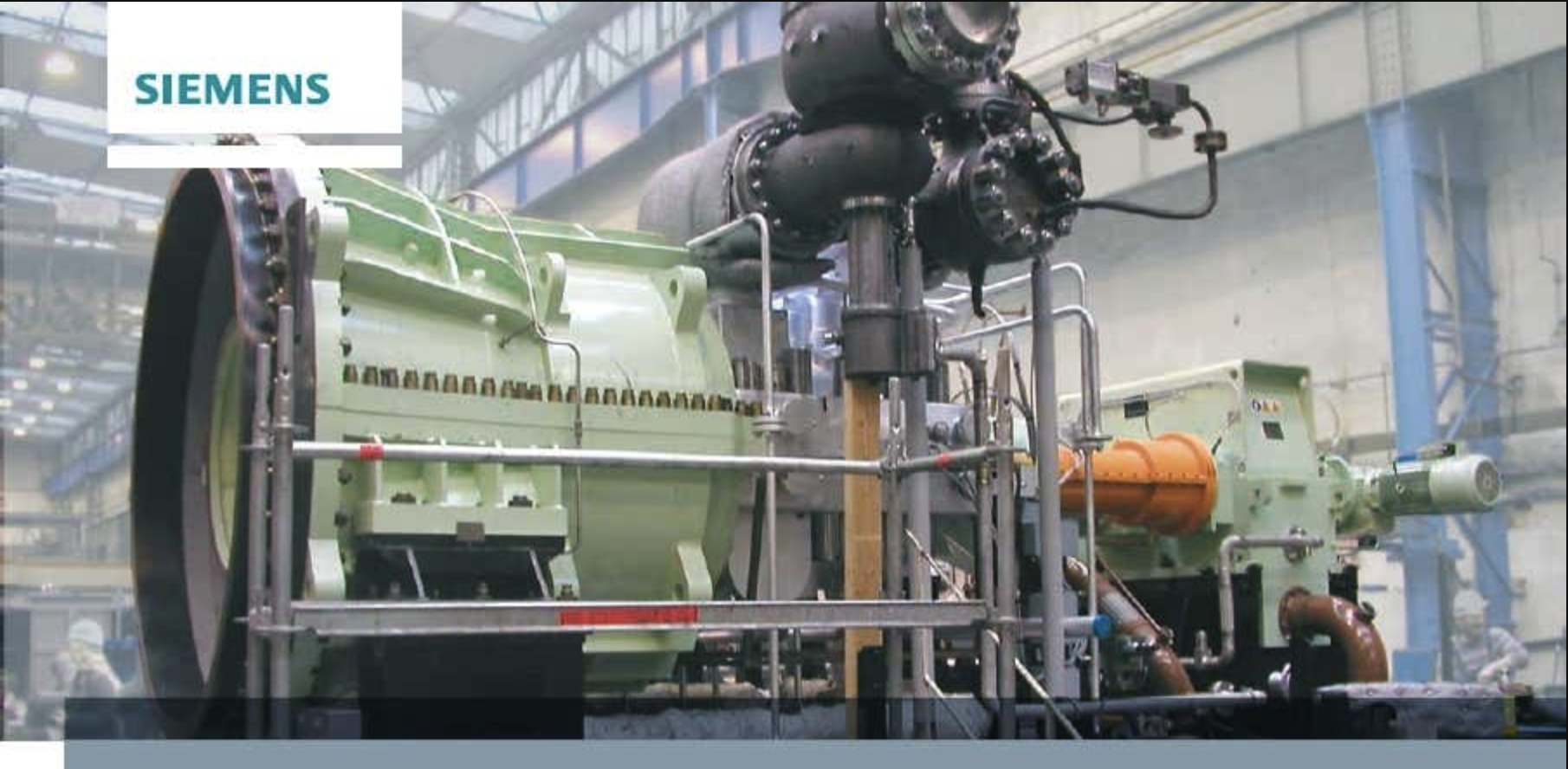

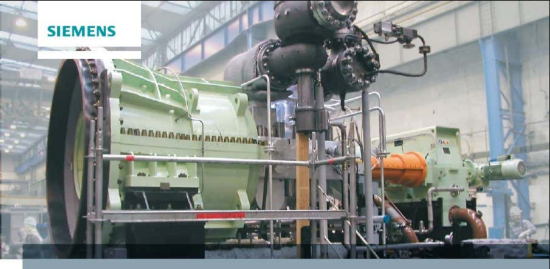

    Siemens SST 300 - Steam Turbine Package

    Be the first to review this product
    $2,850,000.00
    The Siemens SST-300 is a compact, high-performance steam turbine purpose-built for medium-scale applications. Its single-casing, geared configuration delivers excellent performance across binary and flash steam cycles. Whether installed in remote or urban power generation sites, the SST-300’s modular, skid-mounted design ensures efficient deployment and operation.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Technical Data

    - Power Output: ≤ 60 MW
    - Speed: up to 12,000 rpm
    - Inlet Pressure: 140 bar(a) / 2,030 psi
    - Inlet Temperature: 540 °C / 1,004 °F
    - Exhaust Pressure (Backpressure): 20 bar(a) / 290 psi
    - Exhaust Pressure (Condensing): 0.7 bar(a) / 10.2 psi
    - Controlled Extraction: up to 2 valves, 30 bar(a) / 435 psi, 400 °C / 752 °F
    - Uncontrolled Extraction: up to 5 valves, 60 bar(a) / 870 psi
    - Design: Horizontally split casing for easy maintenance
    - Drive Options: Direct or geared drive to generator or mechanical load
    - Compliance: API & ASME standards

    Applications

    - Combined Cycle Power Plants (CCPP)
    - Combined Heat and Power Plants (CHP)
    - Concentrated Solar Power Plants (CSP)
    - Waste-to-Energy Plants (WtE), e.g. waste incineration
    - Biomass Plants
    - District Heating Plants
    - Chemical and Petrochemical Industry
    - Pulp and Paper Mills
    - Sugar Industry
    - Steel Works
    - Mining Industry
    - Cement Industry



    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *

    Technical Data

    - Power Output: ≤ 60 MW
    - Speed: up to 12,000 rpm
    - Inlet Pressure: 140 bar(a) / 2,030 psi
    - Inlet Temperature: 540 °C / 1,004 °F
    - Exhaust Pressure (Backpressure): 20 bar(a) / 290 psi
    - Exhaust Pressure (Condensing): 0.7 bar(a) / 10.2 psi
    - Controlled Extraction: up to 2 valves, 30 bar(a) / 435 psi, 400 °C / 752 °F
    - Uncontrolled Extraction: up to 5 valves, 60 bar(a) / 870 psi
    - Design: Horizontally split casing for easy maintenance
    - Drive Options: Direct or geared drive to generator or mechanical load
    - Compliance: API & ASME standards

    Applications

    - Combined Cycle Power Plants (CCPP)
    - Combined Heat and Power Plants (CHP)
    - Concentrated Solar Power Plants (CSP)
    - Waste-to-Energy Plants (WtE), e.g. waste incineration
    - Biomass Plants
    - District Heating Plants
    - Chemical and Petrochemical Industry
    - Pulp and Paper Mills
    - Sugar Industry
    - Steel Works
    - Mining Industry
    - Cement Industry
