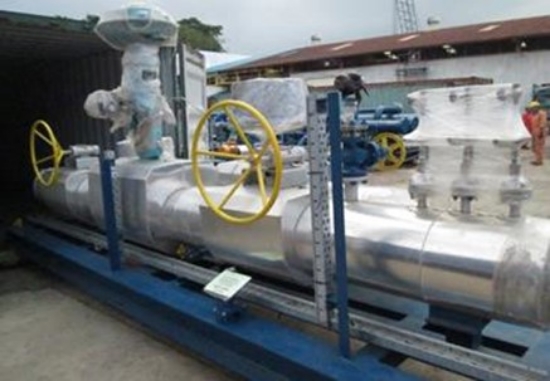

Second Stage Inlet PCV Skid

Stock Equipment : New, unused PCV skid as per P&ID Quantity : 1 off Service : PVC valve EPF-01-1-PCV-270211 CV Model : Series ET, 667-4/70 ,YT-3400LSC1222 Actuator Type : Spring & Diaphragm Positioner Type : CVS3400L (Smart) + L/S, 4-20 mA dc Design Pressure : 210 psig Design Temperature : 350 degF Nozzle sizes : 8” ANSI 150# RF suction and discharge Hazardous Area : Class I, Div. 2 Certification : Exd, IP65 MOC - Casing : Carbon Steel MOC – Stem : SS 316 Service : PIT EPF-01-1-PIT-270211 Model : Rosemount 3051TG3A2B21BKDM5Q4Q8S1Q15 Pressure Range : 0 - 200 psig Design Pressure : 210 psig Design Temperature : 350 degF Process Connection : 2” ANSI 150# Hazardous Area : Class I, Div. 2 Certification : Exd, IP65 MOC - Diaphragm : SS 316L
