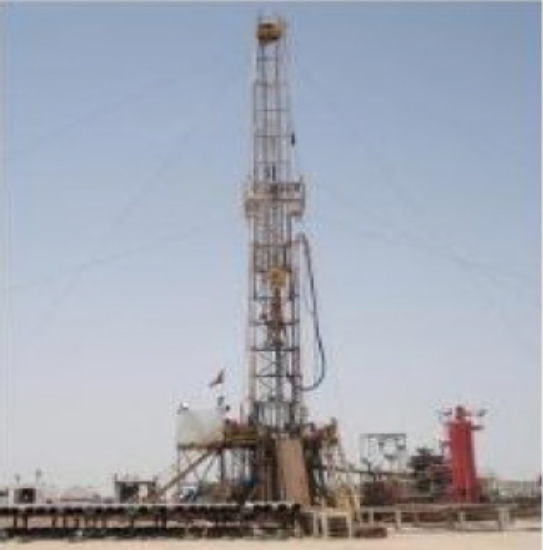

COOPER 750HP TRAILER MOUNTED DRILLING / WORKOVER RIG

MAST

• Manufacturer: NOV (Cooper Manufacturing)

• Type: Cooper P118-365

• Clear Height: 118 ft (36 m)

• String-Up Capacity: 365,000 lbs (8 lines)

• Racking Platform Capacity: 7,800 ft of 5” drill pipe (approx. 2,600 m)

• Crown Block: Cooper, 5 sheaves, 30” grooved for 1-1/8” line

SUBSTRUCTURE

• Manufacturer: Deutag Drilling

• Type: Box

• Clear Height: 17 ft (5.2 m)

• Casing Load Capacity: 350,000 lbs

• Setback Load Capacity: 265,000 lbs

DRAW-WORKS

• Type: Cooper LTO-750 (Double Drum)

• Horsepower Rating: 750 HP (559 kW)

• Maximum Line Pull: 55,700 lbs (247.7 kN)

• Drilling Line Diameter: 1-1/8” (28.6 mm)

• Auxiliary Brake: Parmac 22” Single Rotor Hydromatic Brake

WELL CONTROL EQUIPMENT

• Annular BOP: 13-5/8” x 5000 psi

• Double Ram BOP: 13-5/8” x 5000 psi

• Accumulator: Koomey, 960 liter, 6 stations

MUD SYSTEM

• Mud Pump #1: Weatherford MP-8 (800 HP)

• Mud Pump #2: NOV BOMCO F-800 (800 HP)

• Shale Shaker: 2 x Derrick FLC 514

• Standpipe Pressure: 5,000 psi (345 bar)

• Active Mud System Capacity: 922 bbl (110 m³)

• Reserve Mud System Capacity: 930 bbl (148 m³)

ROTARY TABLE

• Type: National C-205

• Table Opening: 20-1/2” (520 mm)

POWER SYSTEM

• Draw-Works Engine Type: Detroit Diesel Corp / Series 60

• Horsepower Rating: 2 x 500 HP

• Generator Engine Type: Caterpillar 3408 TA

• Generator Rating: A van Kiack 300 kVA

• Voltage: 380/220 V, 50 Hz

CAMP EQUIPMENT

• Full rig camp and base camp included.
