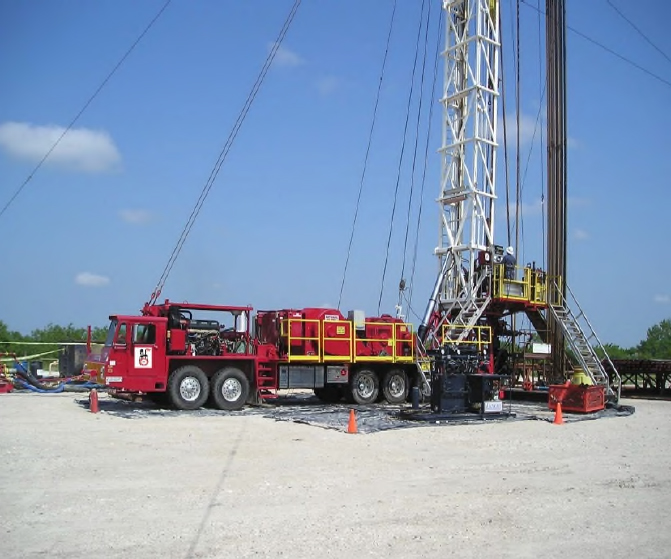

NOV C5 MILLENNIUM – 525HP

TECHNICAL OVERVIEW

• Make / Model: NOV - 5C Millennium (Workover Rig)

• Horsepower Rating: 525 HP

• Hook Load: 250,000 lbs @ 6 lines

• Depth Capacity: 20,000 ft. (2-7/8” Tubing) & 6,500 ft. (4-1/2” Drill Pipe)

• Year Built: 2010

MAST

• Type: Telescopic trailer mounted

• Height: 104 ft

• Gross Capacity: 275,000 lbs

• API Standard: 4F - 2nd Edition

WORKING PLATFORM

• Features:

  • Moves simultaneously, including operator console

  • Floor has less weight and folds hydraulically

  • Air-powered floor pinning

• Dimensions: Adjustable from 6’11” – 14 ft length, 3’6” – 18 ft height

DRAWWORKS

• Make/Model: NOV D500-DB (Double Drum)

• Horsepower: 525 HP

• Drilling Line Diameter: 1”

• Braking System: NOV Disc Brake

• Sand Line: 12,000 ft x 9/16”

MUD PUMPS

• Number of Pumps: 2

• Make: Gardner Denver

• Model: TDH

• Horsepower per Pump: 400 HP

POWER SWIVEL

• Make/Model: National S-120

• Nominal Load Rating: 120 tons

• Maximum Speed: 150 RPM

• Maximum Torque: 6,100 ft-lbs

• 100 RPM Load Rating: 45 tons

• Maximum Circulating Pressure: 5,000 psi

WELL CONTROL EQUIPMENT

• Annular BOP:

  • Type: Shaffer Spherical

  • Size & Pressure: 11” x 5,000 psi

• Double Rams BOP:

  • Type: Cameron Type U

  • Size & Pressure: 11” x 5,000 psi

• Choke Manifolds:

  • Make: NOV T3 Energy Services

  • Size & Pressure: 2-1/16” x 5,000 psi

• BOP Accumulator:

  • Koomey 6 Stations, 320 gallons, 11 x 20 bottles

ADDITIONAL FEATURES

• Joystick operation through PLC

• Easy-to-operate LCD touch screen

• Capable of using base beam (eliminates need for anchors)

• Compact footprint – can work on a 40 ft wide location

• Adjustable soft stop crown and floor saver

• Adjustable block speed control

• CREEP control and weight-on-bit autodriller
