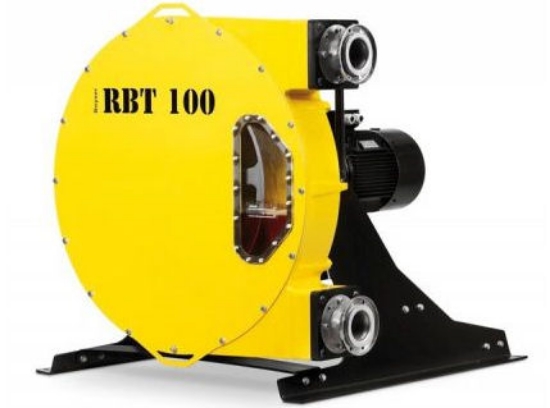

European manufactured peristaltic pumps for the most heavy duty of environments and abrasive of fluids, thanks to its design meaning that the internal hose is the only wetted part and therefore has seals to wear and no valves to clog.
- Can handle dry, viscous slurries with sharp or stringy solids without damage
- Applies low shear for the handling of sensitive fluids
- The absence of seals that wear and leak make it ideal for aggressive chemicals and process liquids
- Heavy duty ball bearing so motor and gear shaft share the load, adding strength and increasing pump lifespan
- Self priming up to 9m
- Dry runs without damage
- Patented double conical hose clamp for quick replacement of hose and a tight, leak free connection
- Food grade models available
- ATEX models upon request
- Accessories available include pulsation dampener to provide smoother flow, hose leakage sensor, trolley, inverter motor control, batch system for preset fluid volumes, feed screw and hopper, vacuum assisted priming and control panel
| Specification | |
| Max Flow Rate | 600lpm |
| Max Head | 15 bar |
| Outlet Sizes | 1" to 4" |
| Approvals | ATEX, FDA |
| Viscosity | 30,000 cP |
| Solids | 100mm |
| Inner Hose | Natural Rubber, NBR, EPDM, Norprene, Tygon and Hypalon |
| Motor | Electric (230v-400v, 50/60Hz), Fixed and variable speed drive |
| Connections | BSP, Tri-Clamp, DIN 11851, SMS, NPT |
