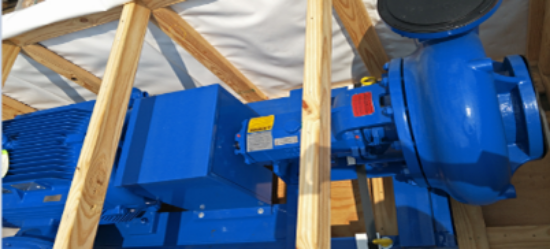

NOV Mission Magnun - Brine Transfer Pump

Motor: 150 HP, 1750 RPM, Class I Group C&D Explosion-proof electric motor, T3C temp. code, 50°C ambient, 480 Volt, 3-phase 60 cycle.

Includes 230 V single-phase space heaters.

Base Preparation: Seal-welded and pre-drilled before sandblasting to near white metal and coated with inorganic zinc. After an initial coat of inorganic zinc, unit.

Technical Specifications:

The 8x6x14 refers to the pump's nominal discharge x suction x impeller stage size (8" discharge, 6" suction, 14" maximum impeller diameter).

This is a heavy-duty centrifugal sand/mud pump designed for abrasive fluids.

Pump Type: Vertical Centrifugal Sand/Mud Pump | Magnum I series, suitable for drilling/production/well-servicing; handles abrasive, high-SG fluids (up to 2.5 SG).

Sizes/Dimensions - Discharge: 8" Suction: 6"/Impeller Max Diameter: 14" (trimmed to 13" in this unit)/Overall Length (approx.): 48-60" (vertical discharge config.)/Shaft Diameter: 2.5"/Bearing

Span: 3" between bearings. Compact vertical design for space-constrained rigs; weight ~800-1,200 lbs (dry, without motor). Exact dims. may vary by base.

 Performance - Max Capacity: 590 m³/h (2,600 GPM)/Max Head: 62 m (203 ft)/Rated Capacity (at 1750 RPM): Up to 1,000 GPM at 165 ft (matches unit spec with 2.0 SG)/Efficiency: 65-

70%/NPSHR: 4.5-5 m (at rated point) | Optimized for 1,000 GPM @ 165 ft TDH with 2.0 SG brine; speed 1,200-1,800 RPM (unit at 1,750 RPM).

Power Requirements - Recommended Power: 75-150 HP (unit: 150 HP)/Speed: 1,750 RPM (60 Hz)/Motor Voltage: 480 V, 3-phase, 60 Hz | Explosion-proof (Class I, Group C&D), T3C

Temp code (max 200°C surface temp), 50°C ambient; includes 230 V space heaters.
