Kawasaki Turbine Power Plant 12MW

The plant is 12MW in total, the plant has 3 gas turbines with 4MW capacity in each (5000kVa). This is a Japanese 2018 brand-new, unused plant from a cancelled project privately brought from MITOAUTO TRADING, the plant is the current latest eco green model of Kawasaki which is very advantageous for the client due to its reliability and durability since it runs HFO/Diesel . The plant has been gone through all the required installation maintenance (i.e. preventive maintenance etc.).

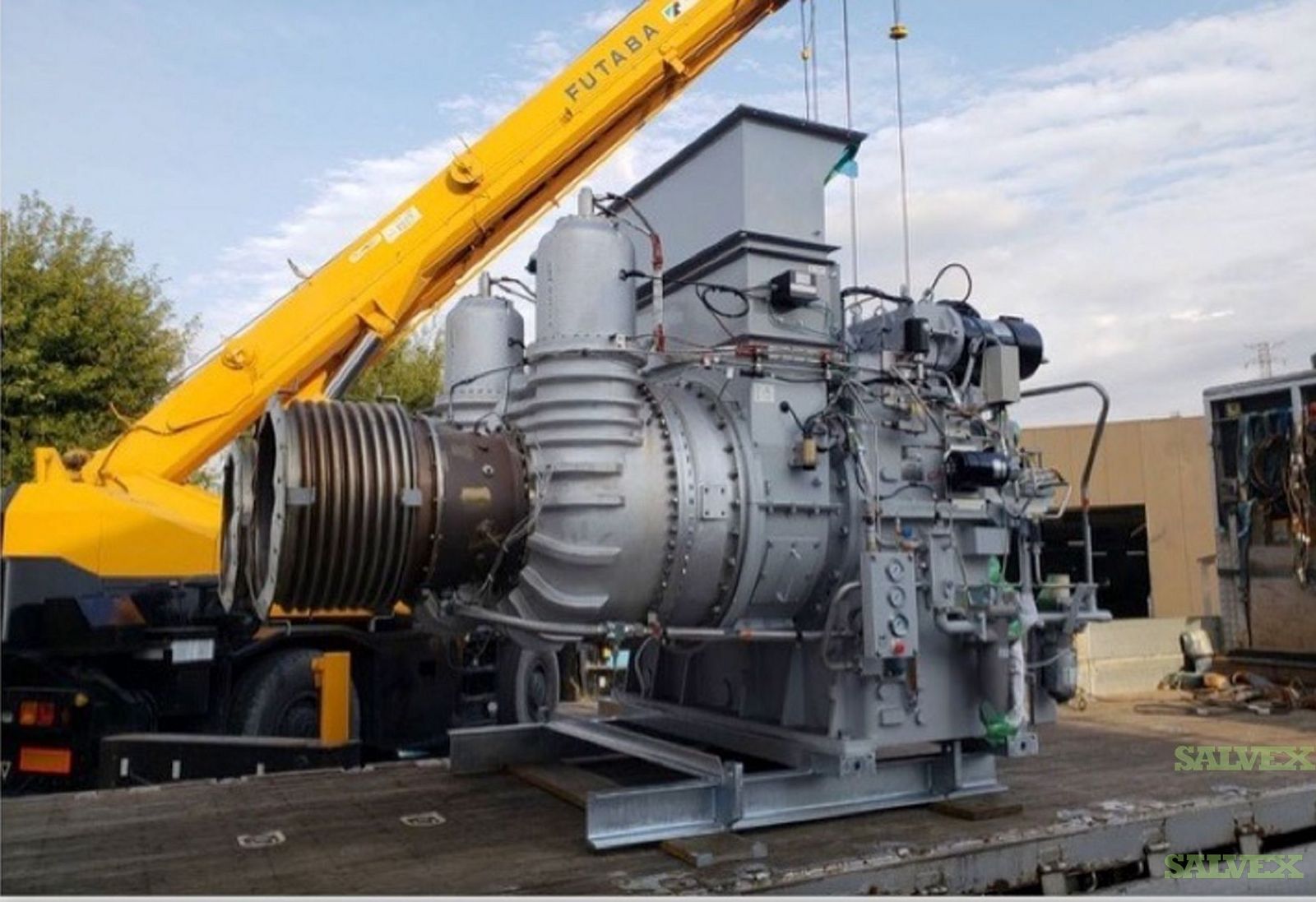

1. Gas Turbine: Kawasaki Heavy Industries, Ltd (3Units)
• Model M1T-26
• Rated output 4347 KW 40 ° C
• Rotational speed 22000/1500 min-1
• Serial number KHI-790112
• Month of production 2018-2
• Kawasaki Heavy Industries, Ltd.

Hitachi Decelerator
• Model MPG160-23
• Reduction ratio 14.618
• Transmission power 4800KW
• Output rotational speed 1500 min-1
• Serial number PG02524
• construction number 0A006846A
• Manufacturing date 2018/2
• T5000A-BER
• Rated output 4000kW
• Voltage 6600v
• Frequency 50Hz
• gas turbine MIT-26
• Generator TAKL-SCKE
• Serial number KHI-791ABA1003-3
• Manufacturing date 2018-3
• Current 438A
• Number of phases 3 φ
• Height 3800 × width 3500 × depth 8500
• Simple release cycle 1 axis type
• Construction Consists of a centrifugal two-stage compressor, an axial
flow four-stage turbine, a single-tube can combustor and a reduction gear
• Output 4,347kw(40℃)
• Rotational speed/Turbine main shaft- 22,000min⁻1
• Output axis-1,500min⁻1
• Reduction gear-Planetary + Parallel gear reducer
• Starter motor-Electric type
• Fuel controller- Electric type A heavy oil No. 1 (JIS K 2205)
• Fuel used Oil type: Synthetic base oil (AERO SHELL ASTO-500)
• Used lubricating oil Oil amount: 240L

2. Generator/Alternator: Toshiba (3Units)
• Phase number 3
• Number of poles 4
• Voltage 6600V
• Power factor 0.8
• Rated continuous
• Phase number 3
• Number of poles 4
• Voltage 6600V
• Power factor 0.8
• Rated continuous
• Output 5000KVA
• Current 438A
• Field voltage 70V
• Annual operation time 1000 hours
• Rotation speed 1500 min-1
• Frequency 50Hz
• Field current 455A
• Output 5000KVA
• Current 438A
• Field voltage 70V
• Annual operation time 1000 hours
• Rotation speed 1500 min-1
• Frequency 50Hz
• Field current 455A
• Refrigerant temperature 40 ° C
• Field winding 155 (F)
• Heat resistant class; Armature winding 155 (F)
• AC exciter: Output 39 KVA
• Voltage 55V
• Current 410A
• Field voltage 90V
• Protection method IP20
• Cooling method ICO 1
• Mass 9660 Kg
• Serial number 7154498BQA2000
• Standard JEC-2130-2016
• The main points of the alternator are as follows.
• Format Protective type, free air flow type (IP22)
• Construction- Horizontal axis type, rotating field type
• Rated capacity-5000kv
• Rated output-4000kw
• Rated voltage 6,600V
• Rated current- 437A(reference)
• Rated power factor-0.8(delay)
• Rated Continuous Frequency -50Hz
