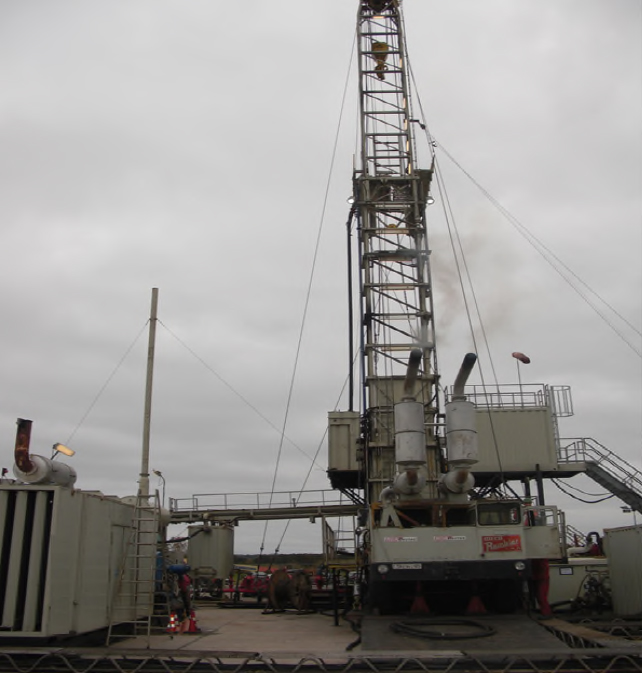

IDECO RAMBLER 1000HP TRUCK MOUNTED RIG

TECHNICAL OVERVIEW

• Rig Type: IDECO KM-112-358 AH (Telescoping)

• Rating: 1000 HP (750 kW)

• Gross Capacity: 545,000 lbs (2425 kN)

• Crown Block Load: 383,000 lbs (1705 kN)

• Racking Platform Capacity: 7,800 ft of 5” Drill Pipe (2,400 m)

MAST

• Manufacturer: IDECO

• Type: KM-112-358 AH (Telescoping)

• Clear Height: 112 ft (34 m)

SUBSTRUCTURE

• Manufacturer: DEILMANN T30

• Type: 280/446

• Clear Height: 15.25 ft (4.65 m)

• Casing Load: 353,000 lbs (1570 kN)

• Setback Load: 265,000 lbs (1177 kN)

DRAW-WORKS

• Manufacturer: IDECO

• Horsepower Rating: 1000 HP (750 kW)

• Maximum Line Pull: 55,700 lbs (247.7 kN)

• Drilling Line Diameter: 1-1/8” (28.6 mm)

• Auxiliary Brake: Parmac 202 Hydromatic Brake

WELL CONTROL EQUIPMENT (BOP)

• Annular BOP: Shaffer 11” x 5000 psi

• Double Ram BOP: Cameron 11” x 5000 psi

• Accumulator: Koomey Type T15160-3B-AC32, 7 Stations

MUD SYSTEM

• Mud Pumps: 2 x Gardner Denver PZ8

• Shale Shakers: 2 x NOV Model King Cobra

• Standpipe Pressure: 5,000 psi (345 bar)

• Active Mud System: 922 bbl (110 m³)

• Reserve Mud System: 930 bbl (148 m³)

ROTARY TABLE

• Type: National C-205

• Table Opening: 20-1/2”

POWER SYSTEM

• Engine Type (Draw-works): Caterpillar 3408 TA

• Horsepower: 2 x 500 HP

• Generator Type: Caterpillar 3408 TA

• Generator Rating: A van Kiack 300 kVA

• Voltage: 380/220 V, 50 Hz

CAMP EQUIPMENT

• Full rig camp and base camp included
