Grundfos Centrifugal Pumps

Be the first to review this product

$120,000.00

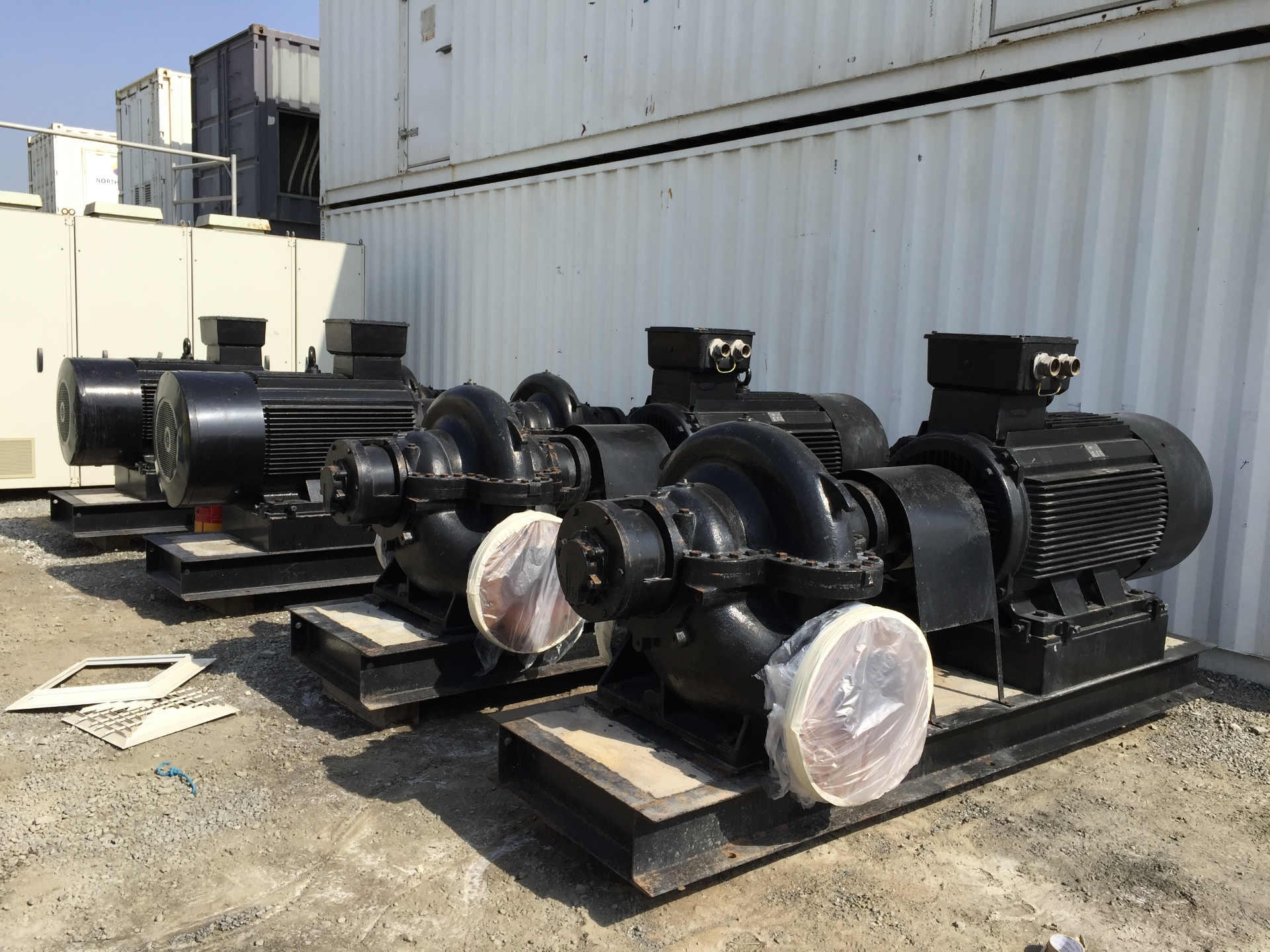

The Grundfos HS 300-200-489 5/1-F-A-BBVP is a high-capacity, horizontal split-case centrifugal pump from the Grundfos HS series (Asian/European version, variant 5). This model is a single-stage, non-self-priming volute pump with double-suction impeller design, renowned for its high energy efficiency, low life-cycle costs, reliability, and suitability for demanding industrial and utility applications.

Qty:

Overview
Reviews
Contact Us

Key Features and Benefits

Double-suction impeller (hydraulically balanced, typically in ASTM B584 bronze) for axial thrust minimization, extended bearing and seal life, reduced vibration, noise, and wear.
Split-case construction allows easy access to internal components (impeller, bearings, wear rings, shaft seal) for maintenance without disturbing piping or the motor.
Compensated double volute casing virtually eliminates radial loads, improving efficiency and durability.
Replaceable wear rings protect the casing and maintain high operating efficiency over time.
Dynamically balanced rotating assembly (ISO 1940 class G6.3) for smooth, long-term operation.
Bronze shaft sleeves protect the shaft and secure the impeller.
Mechanical shaft seal (BBVP code: rubber bellows type, carbon/aluminium oxide faces, nitrile rubber elastomer) suitable for clean, non-aggressive liquids up to 100°C.
Long-coupled design with a totally enclosed fan-cooled (TEFC) standard IEC/DIN motor (mounting B3/IM 1001), mounted on a robust welded steel C-channel base frame.
Flange standard: PN 16 (DIN/EN 1092-2) for suction (DN 300 inlet) and discharge (DN 200 outlet).

Performance Overview

Flow rate (Q): Positions in the high-flow range, typically up to 1000–1500+ m³/h (depending on exact curve and impeller trim; the "/452" likely indicates a trimmed impeller variant from the nominal 489 mm for customized head/flow).
Head (H): Approximately 30–80+ m (adjustable via impeller trim).
Motor power (P2): 110–355 kW range (often requiring a high-power 4-pole motor for this large size).
Maximum operating pressure: 16 bar.
Liquid temperature: Up to 100°C (with BBVP seal; higher with alternative seals like FPV).
Ambient temperature: Up to 60°C max.

3 units - priced for all 3!
