    MLock Remote Hydraulic Connector

    $301,699.00
    Panel skid mLock PLC - UL508A Panels, Shielding in Panel, Amphenol Pigtail Receptical, Amphenol Cable 200ft (24C), Amphenol Cable Reel, Dual Hyd Reel, 1/2" 4.3k Hyd Hose (10ft) -- panel to reel , 1/2" 4.3k Hyd Hose (200ft) -- reel to header, 1/2" FNPT D-Quick Connect, 1/2" MNPT D-Quick Connect, 1/2" FNPT Quick Connect, 1/2" MNPT Quick Connect, Skid Pitched Roof with Front Rain Guard, Custom Tarps, Green Light,Blue Light, Red Light, Light Box, Sigma ProConnex™ 1/2" Liquid Tight Straight Connector, Light Box Flex Tubing (8 feet) (comes in 25ft), 8' 18ga 4-pair ($1.12 p/ft), Hydraulic Assembly, Hydraulic Res, fittings and piping from res/pumps to manifold, Header Skid, Header Assembly, Wellhead Pin (4), Header Skid, Head Shroud Backplate, Power coat (shroud, cone, blackplate), Satellite Light Box, Green Light, Blue Light, Red Light, Light Box, 60' 18ga 4-pair, Bulkhead connector, Tripod Stand, Tripod receiver, Light Box Base, Generator, Trailer (230 VAC - 3 phase 5kV)
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

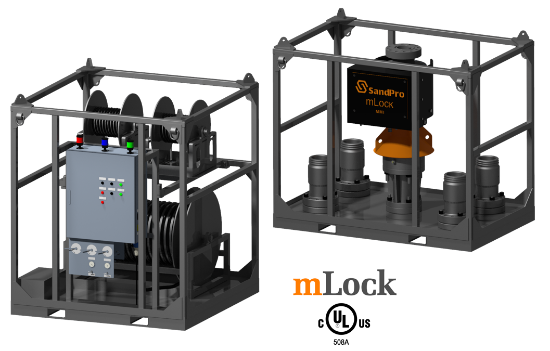

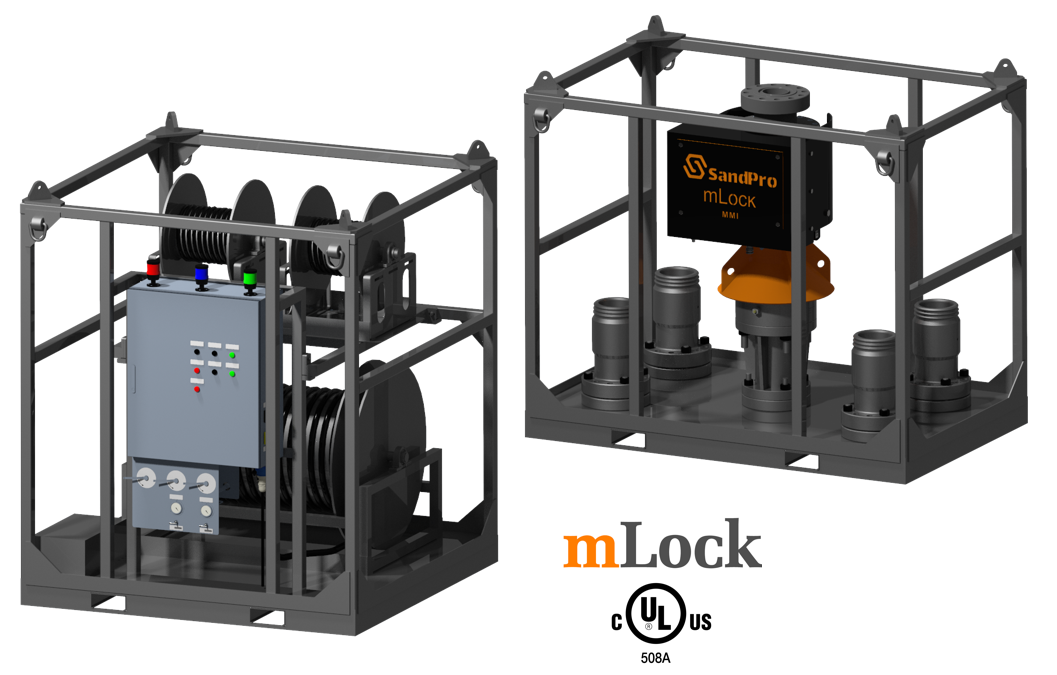

    The mLock system is a remote hydraulic connector for wireline operations.

    The mLock connects wireline equipment to the well quickly and safe.



    The mLock has a control system that provides the hydraulic pressure and safety protocals necessary to perform operations.



    FEATURES:

     Compact design and reversible system.  Simple, fast installation and operation.  Oversized and visible stabbing guide.

     Standard connection API 6A 5-1/8” 10,000 PSI.

     Ex Class 1 Division 1 allowing use during well completions.



    ADVANTAGES:

     Improving efficiency: Hydraulic latching in under 20 seconds makes the operation more efficient by speeding up connection of equipment to the well.

     Simple to Operate: Push button simplicity, rapid and simple deployment by onsite personnel.

     Increasing operational safety: Remote hydraulic actuation keeps personnel out of red zone.

     Status indicator lights are easily visible anywhere on location.



    BENEFITS

    Improved equipment-to-well connection timeline

    Easy installation and intuitive operation

    Robust safety features
