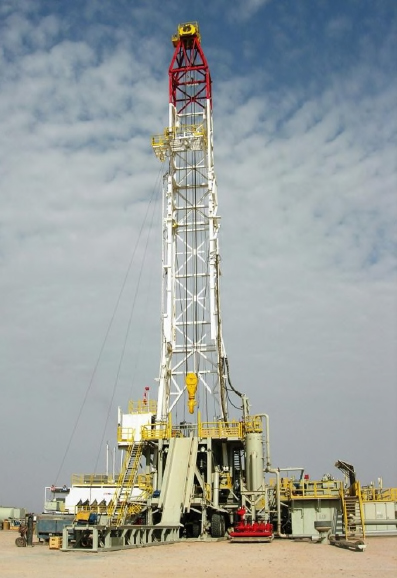

DRECO DESERT MOBILE 1000HP RIG

TECHNICAL OVERVIEW

• Rig Type: DRECO M 1151610-700T (Telescopic)

• Rating: 1000 HP (750 kW)

• Hook Load: 500,000 lbs @ 10 lines (227 t)

• Drilling Depth (Theoretical): 12,000 ft (3,658 m)

• Year of Manufacture: 1986

• Refurbished: 2009 & 2016

• API 4F CAT IV Validity: 2019

MAST

• Type: DRECO M 1151610-700T Telescopic

• Clear Height: 115 ft (35 m)

• Base Width: 16’ 10” (5.1 m)

• Nominal Gross Capacity: 700,000 lbs (317 t)

• Hook Load: 500,600 lbs @ 10 lines

SUBSTRUCTURE

• Type: Deilmann T30, Type 280/446

• Clear Height: 25 ft (7.6 m)

• Casing Load: 450,000 lbs (204 t)

• Setback Load: 375,000 lbs (170 t)

DRAWWORKS

• Type: DRECO 1000 UE

• Horsepower Rating: 1000 HP (750 kW)

• Maximum Line Pull: 55,700 lbs (25.3 t)

• Drilling Line Diameter: 1-1/8” (28.6 mm)

• Auxiliary Brake: Dretech 19 RD 130

ROTARY TABLE

• Type: National C-275

• Table Opening: 27-1/2” (698.5 mm)

MUD SYSTEM

• Mud Pumps: 2 x National 9P-100, 1000 HP

• Pressure Rating: 5,000 psi

• Shale Shakers: 2 x Brandt King Cobra (Linear Motion)

• Standpipe Pressure: 5,000 psi (345 bar)

• Active Mud Volume: 922 bbl (110 m³)

• Reserve Mud Volume: 930 bbl (148 m³)

WELL CONTROL EQUIPMENT

• Annular & Double Rams BOP: 13-5/8” – 5000 psi

• Choke Manifold: 3-1/8” – 5000 psi

• Accumulator: Koomey Unit, 960 liters, 6 stations

POWER SYSTEM

• Engine Type: 4 x Caterpillar 3512 B

• Horsepower Rating: 4 x 1476 HP

• Generators: Piller NKT 1000-6

• Generator Rating: 4 x 1000 kVA

• Voltage: 600 V, 50 Hz

• SCR Unit: AEG

TOP DRIVE (OPTIONAL)

• Manufacturer: CANRIG

• Model: 6027AC

• Rating: 275 ton

• Motor Type: AC

• Motor Rating: 600 HP

• Max Torque: 30,000 ft-lb

• Breakout Torque: 60,000 ft-lb

CAMP EQUIPMENT

• Full rig camp and base camp included
