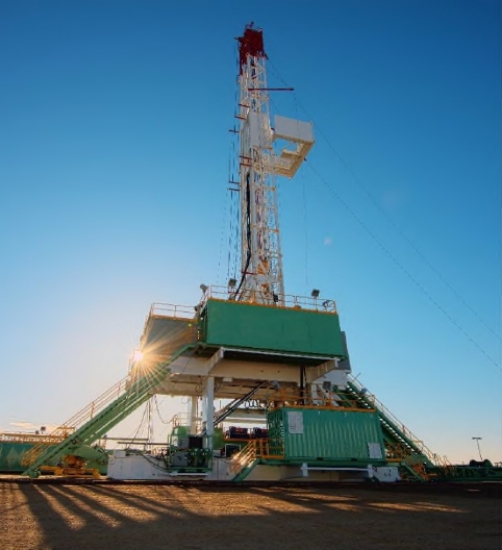

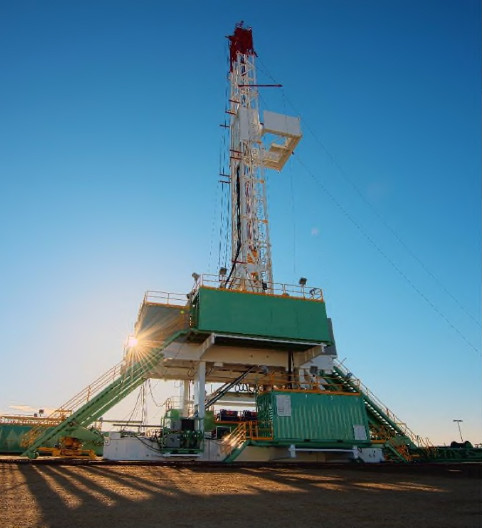

DRECO 400HP TRAILER MOUNTED SUPER SINGLE SLANT RIG

DRECO 400HP TRAILER MOUNTED SUPER SINGLE SLANT RIG

Year Built / Rebuilt: 1997 / 2006
Estimated Drilling Depth: 7,200 ft
Style: Trailer Mounted, Super Single Slant
Design: Box Type (Space below trailer)
Make: DRECO Precision
Model: 400-PSD
Rated HP: 400 HP

MAST

• Height: 75 ft

• Static Hook Load Capacity: 250,000 lbs

• Mast Racking Capacity: N/A

SUBSTRUCTURE

• Height: 13.50 ft

• Clear Height: 9.20 ft

DRAW WORKS

• Drawworks Model: Not specified

• Brake Type: Band

• Drilling Line Size: 7/8”

• Auxiliary Brake: Eaton 224 WCB

• Estimated Camp Move Loads: 58

POWER GENERATION

• Engines: Caterpillar C-15

• Generators: With drawworks

WELL CONTROL EQUIPMENT

• Annular BOP: Hydril 7-1/16" x 5000 psi

• Double Ram BOP: Hydril 7-1/16" x 5000 psi

TOP DRIVE / POWER SWIVEL

• Power: 190 kW (250 HP)

• Swivel: No swivel

ROTARY TABLE

• Not installed

IRON ROUGHNECK

• Model: Apache 90-70

PIPE HANDLING

• Pipe Arm: Rostel Industries Slant 7

MUD SYSTEM

• Mud Pumps: 1 x Continental Emesco F-650 (650 HP)

• Active Mud Volume: 600 bbl

• Reserve Mud Volume: 240 bbl

• Pressure Rating: 5,000 psi

SOLIDS CONTROL

• Shale Shakers: 2 x Brandt King Cobra

• Desilter / Desander / Mud Cleaner: N/A

• Mud Gas Separator: Yes

• Centrifuge: Present (unspecified)

TORQUE SPECIFICATIONS

• Maximum Designed Torque: 40,700 N·m (30,000 ft-lbs)

• Continuous Torque (High): 11,600 ft-lbs

CAPACITY & LOADS

• Casing Capacity: 200,000 lbs

• Maximum Setback Load: N/A

• Estimated Rig Move Loads: 32
