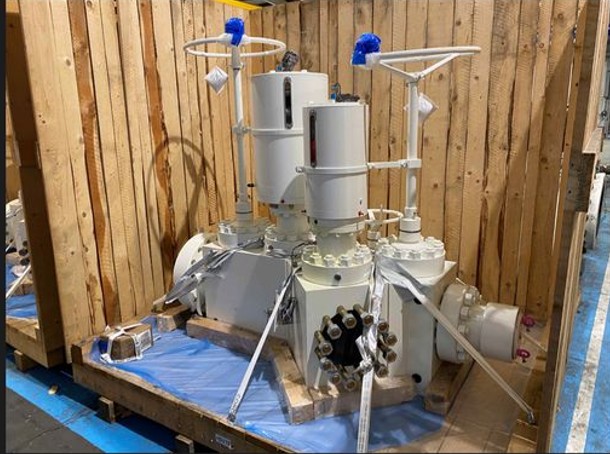

Cameron Xmas Tree Assembly Style FF-NL

ASSEMBLY, XMAS TREE, STYLE 'FF' WITH INTEGRAL WING VALVE AT 45 DEG, 6.3/8" API 5000 TYPE 'FLS' VALVES. 9" API 10000 BOTTOM FLANGE X 7.1/16" API 5000 STUDDED TOP WITH OTIS STYLE TREE CAP AND 7.1/16" API 5000 STUDDED WING OUTLET. SSV WIRECUTTING HYDRAULIC ACTUATOR ON UPPER MASTER
VALVE & SSV HYDRAULIC ACTUATOR ON WING VALVE. 2.1/16" API 5000 'FLS' MANUAL VALVE ON KILL WING OUTLET C/W 2" FIG 1502 UNION. API 6A 20TH EDITION, TEMP CLASS 'U' MATL CLASS 'FF-NL', PSL-3, PR 2.
ACCORDING TO SP-005152-03

• Service: Sour Gas
• Pressure Rating: 5,000 psi
• Temperature Rating: U (0F to 250F)
• Material Class: FF-NL
• Product Specification: PSL-3
• Performance Rating: PR2

Complete documentation available on request.
