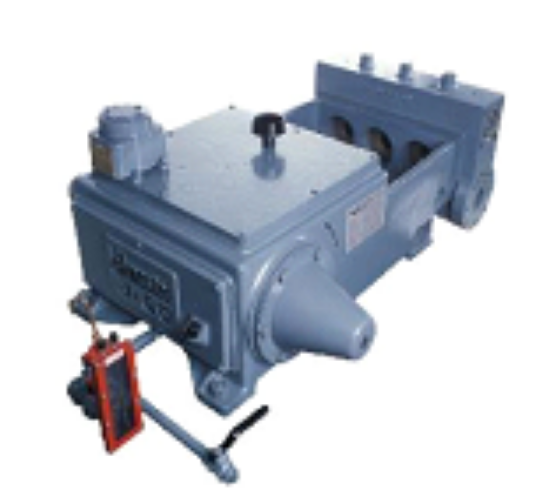

2 Piece Skid Zone 2 Caterpillar – JWS 165 Pump

$0.00

The 2-piece JWS pumping units are Skid A containerized and Skid B open frame. The JWS 165 pumps are appropriate for continuous pumping operations. This includes applications such as water injection, reverse circulation, well killing, acidizing and cementing operations.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Features:

All (DNV 7-1) rated
2 Piece Skid design for light weight lifting capacities
Skid A Engine package is Heavy duty, fully bunded offshore container
Adjustable over pressure safety kick out devise
Adjustable over pressure relief valve
Self-contained centrifugal charge pump

Options:

Remote shutdown
Flow meter
Filtering system

*Engine Specification*
*Engine model*	Caterpillar 3306DITA
*Horse* *Power*	330hp
*Engine idle speed*	900
*Maximum engine speed*	2100
*Engine oil capacity*	28 liters
*Engine oil specification*	15w40 Mineral
*Engine coolant capacity*	200 liters
*Fuel tank capacity*	295 liters
*Fuel consumption at full load*	65 liters per hour

*Pump* *Performance*
*Model*	National JWS 165
*Type*	Triplex
*Max Flow Rate*	7.77 BBL/min
*BBLs/Day*	11,191 bpd
*Maximum operating pressure*	5,000 psi
*Plunger* *Diameter*	2 3/4” to 4 1/2”
*Plunger* *Stroke*	5”
*Ratio*	4.38 to 1
*Lubrication* *oil specification*	EP Gear oil #320
*Lubrication* *oil capacity*	8 Gal

*Operating Systems*
*Start* *system air supply*	115psi – 150psi
*Safety system shutdowns*	Low oil press & engine overspeed
*Safety system Shutdowns*	High water & exhaust temp
*Pump* *discharge* *connection*	2” 1502
*Transmission*	Allison HT754 CR
*Internal* *Lighting*	Atex Zone 2 in Skid A

*Safety Features*
*External* *Emergency* *Stop*	1 x Push Button
*ISO Interlockers*	Locked Together
*Rig* *ESD Connection*	110Volts optional
*Safety System Shutdown*	Electro/pneumatic
*Over pressure pump kick out*	Pneumatic
*Pressure* *relief valve*	Mechanical

*Lifting* *Specification, Weights & Dimensions Skid A*
*Lifting* *Spec*	DNV 2.7-1
*Length*	535 cm
*Width*	222 cm
*Height*	221 cm
*Weight* *(dry)*	7,800kgs
*Weight* *(kg op)*	8,200kgs
*Max Gross weight*	10,000kgs
*Lifting* *Specification, Weights & Dimensions Skid B*
*Lifting* *Spec*	DNV 2.7-1
*Length*	200 cm
*Width*	222 cm
*Height*	221 cm
*Weight* *(dry)*	3,800kgs
*Weight* *(kg op)*	4,200kgs
*Max Gross weight*	5,000kgs
